Tubular-shaped rollable blinds with separation between them, made from AluNova EXT aluminium. Flat and curved slats with 4 mm separation.

It is available in four different applications: traditional, compact, renovation, and tunnel.

Tecnical descriptionExpand all

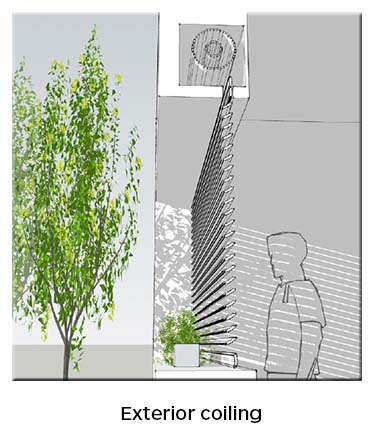

Enrollamiento superclassic EN
Roller shutters made with tubular slats profile and spacing between them.
The free passage between the slats allows the entrance of light and ventilation in the room. The perfect coupling of the slats when the shutter is fully closed, provides complete darkness. .
    distancia entre lamas alunova exterior
The slat separation can be chosen according to the chosen model.
The separations range from 3mm (AluClassic) to 7mm (AluClassic B)

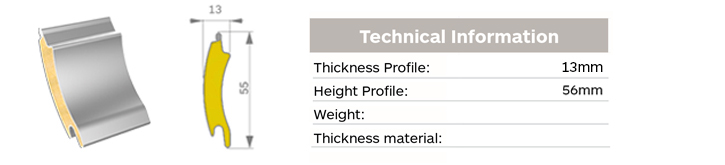

AluNova Slat

  caracteristica lama alunova exterior
Traditional Application
Aplicacion Obra conjunto
In Application for traditional construction system, Gradhermetic supplies AluNova roller shutter, guides, necessary fittings, and operations for their installation in carrying out the work.

Operated by cord, crank handle, oscillating rod and by IO or ISG motor.
Maximum width 2200mm
Maximum area 4,00m2

Compact Application (Alucomplet)
Aplicacion compacto
ICONO Compacto
In the Compact Application, Gradhermetic supplies the AluComplet system ready to customize carpentry. It is made with AluNova roller shutter in an extruded aluminium box with mullions and rain gutters forming a complete circle with a thermal bridge break.
Operated by IO or ISG motor.
Maximum width 2200mm
Maximum area 6,30m2
Comapct box 205/250/280

Renovation Application (Alubloc)
Aplicacion renovación
ICONO Renovación
In the Renovation Application, Gradermetic supplies hthe AluBloc system, made up of AluNova roller shutter in an aluminium box, the guides and accessories necessary for their installation in the gap on the façade.

Operated by IO or ISG motor.
Maximum width 2200mm
Maximum area 6,30m2
Renovation box 205/250/300

Tunnel Application
Aplicacion tunel
In the Tunnel Application, Gradhermetic supplies AluNova roller shutter with guides, necessary fittings, and instructions for their installation in pre-fabricated tunnel boxes.

Operated by IO or ISG motor.
Maximum width 2200mm
Maximum area 4,00m2

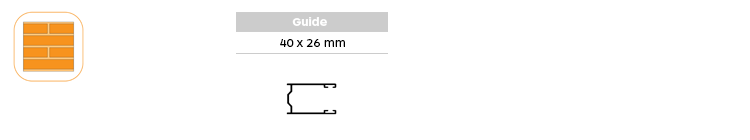

Traditional Application
Guía AluNova Ext Aplicación Obra

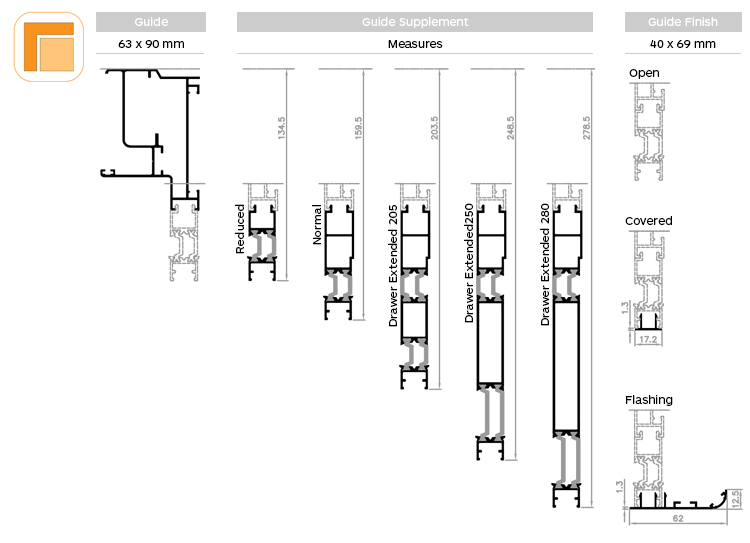

Compact Application (Alucomplet)
Guía AluNova Ext Aplicación Compacto

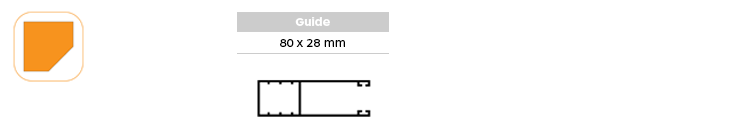

Renovation Application (Alubloc)
Guía AluNova Ext Aplicación Renovación

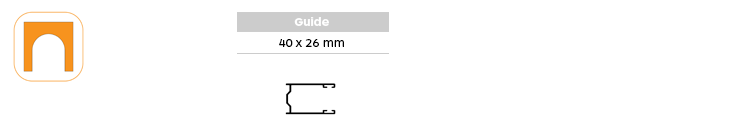

Tunnel Application
Guía AluNova Ext Aplicación Túnel
Traditional Application

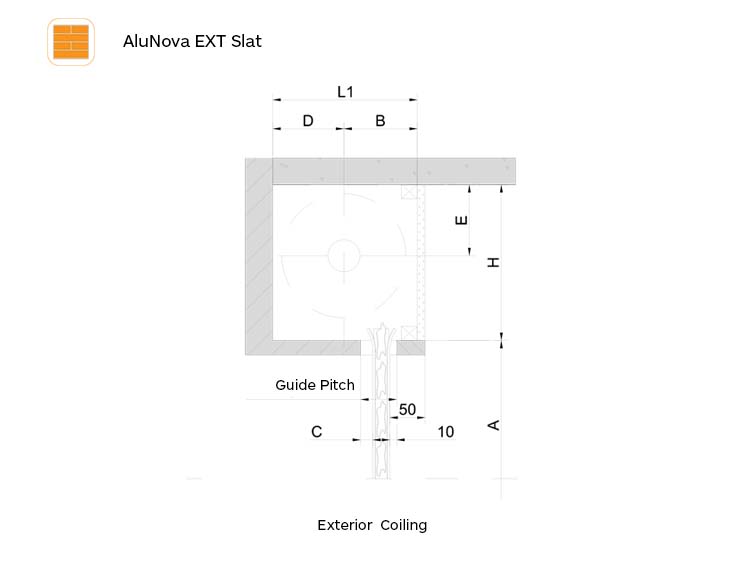

Seccion enrollamiento obra   Tabla enrollamiento obra

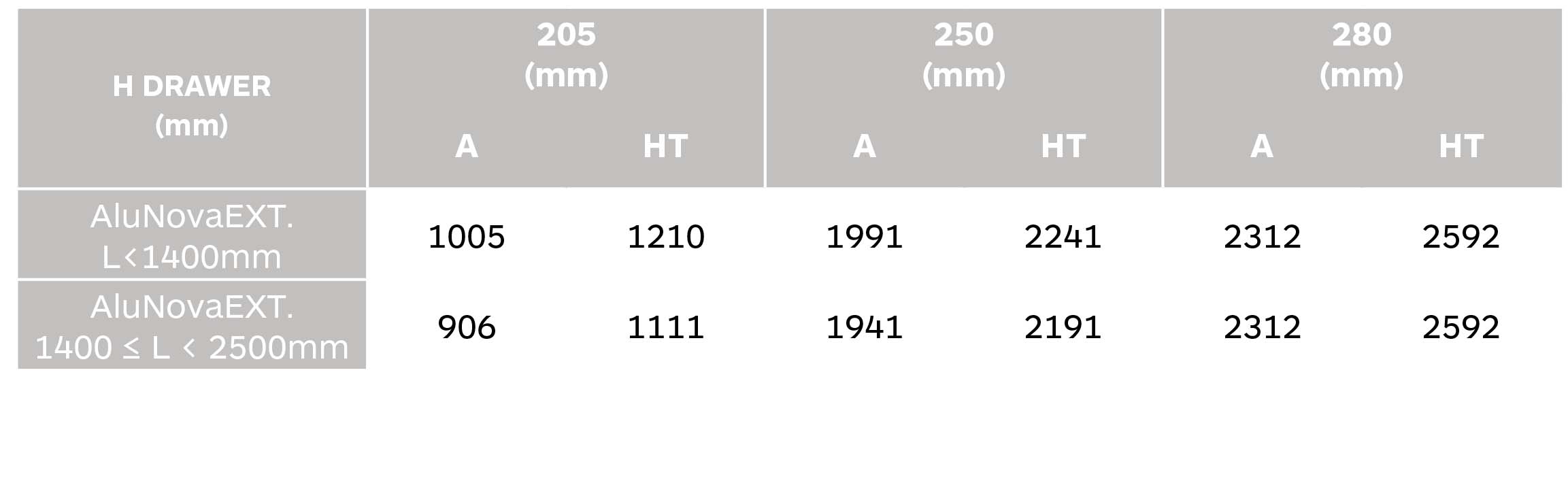

Compact Application (Supercomplet)

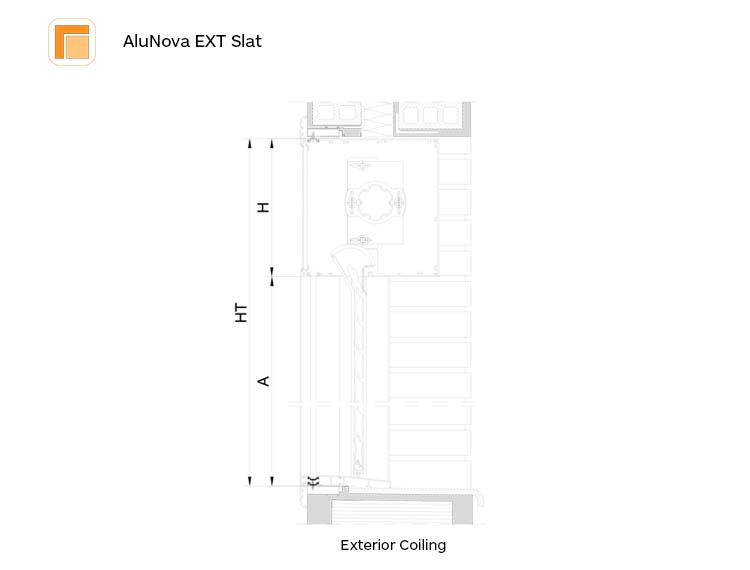

Seccion alunova compacto   tabla enrollamiento alunova compacto

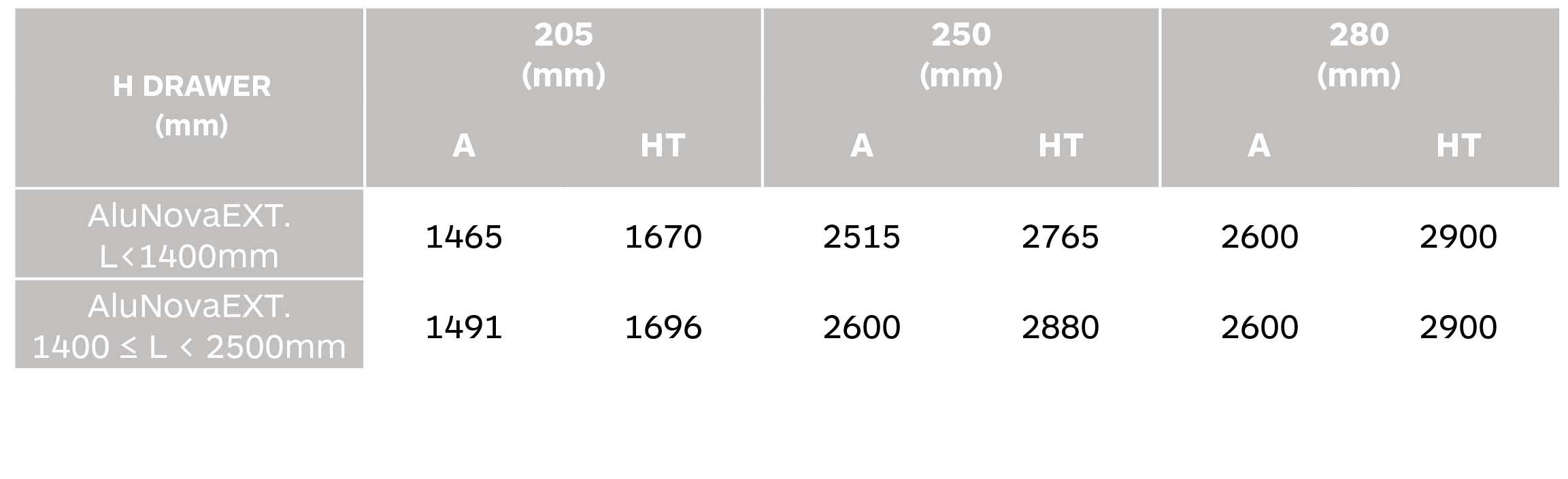

Renovation Application (Superbloc)

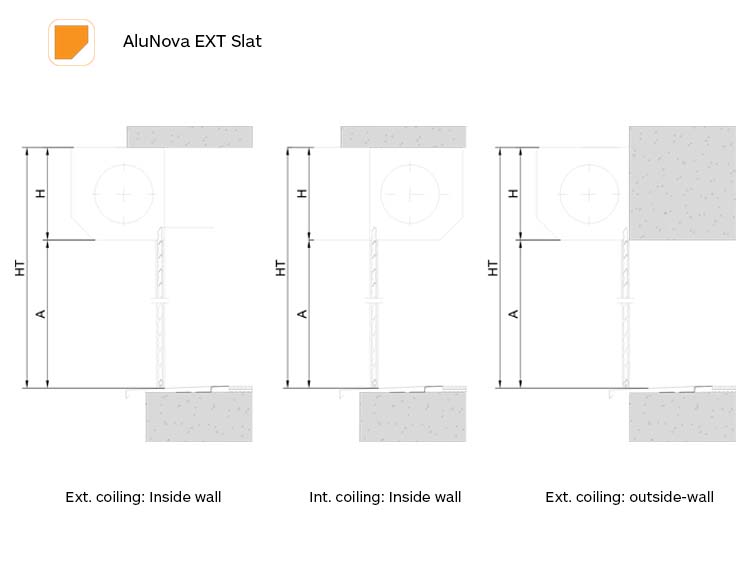

seccion alunova Renovacion   Tabla enrollamiento renovacion alunova ext

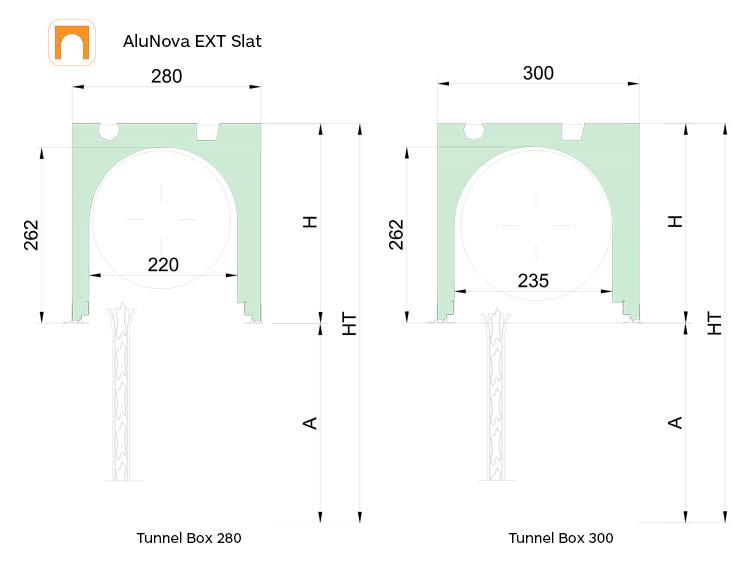

Tunnel Application

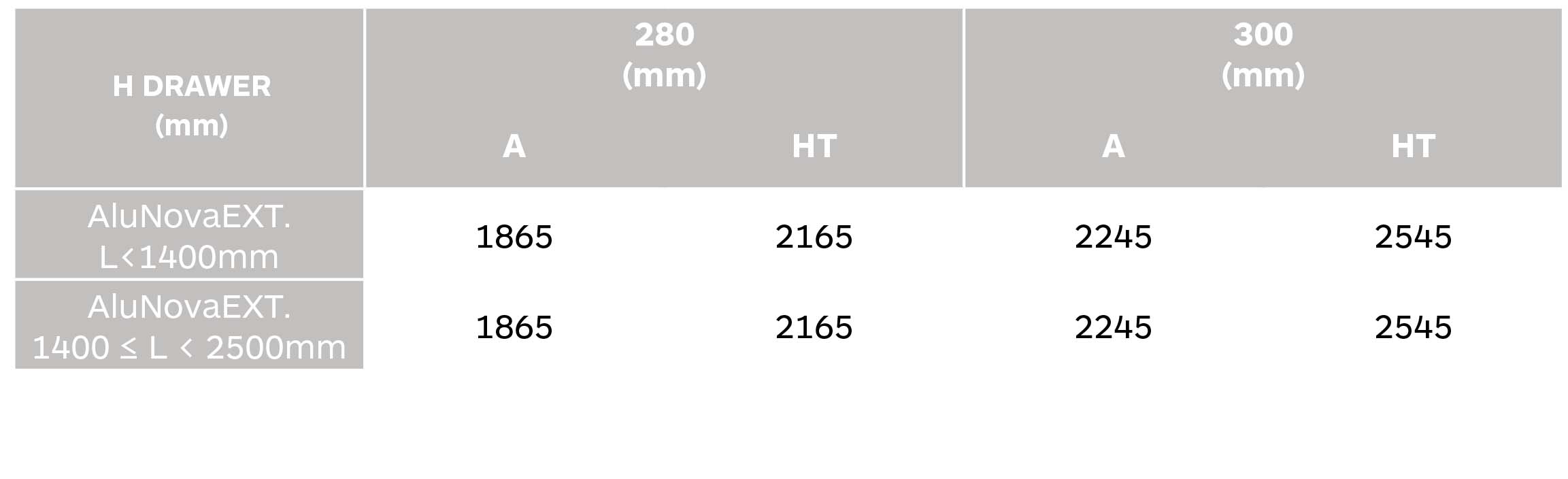

Seccion enrollamiento túnel alunova ext   Tabla enrollamiento túnel Alunova
  Finish & Colours
  Ahorro energetico
How to maintain our products:
Mantenimiento icon Mantenimiento icon
For a good maintenance of our products, please download the maintenance instructions, which you can find on the right sidebar.
